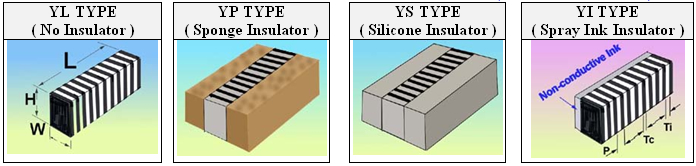

SPECIFICATION OF INTER - CONNECTOR ( ELASTOMER )

inter_001

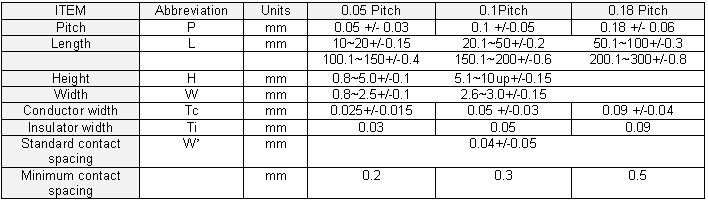

General Tolerance :


inter_002

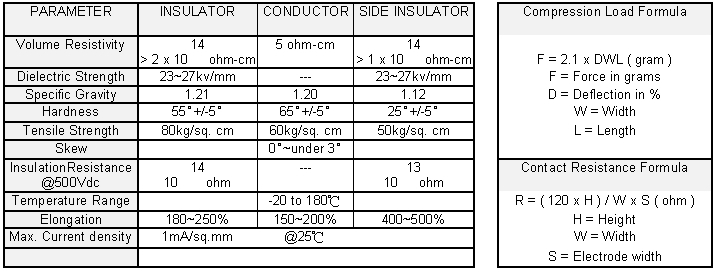

Physical Properties:

inter_003

Design Guide : Length = According to LCD glass length or minus 1.5mm
  Height = Distance from PCB to LCD contact surface x ( 1.1 ~ 1.5 )
  Width = LCD pin-out edge x ( 0.9 ~ 0.95 )
